Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : 560B

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 10/PCS

Price : consult

Supply Ability : 100/Set/Month

Delivery Time : 5-15 work days

Packaging Details : Details Carton

Operating Temperature : -20～35℃

Standard Or Nonstand : Standard

Seal Faces : CAR/SIC

Stainless Steel Material : SS304.SS316

Compatibility : Fits most standard water pump models

Secondary Sealing : Fkm NBR CA SIC

Mounting Type : Direct Replacement

Fluid Compatibility : Water, Oil, Mild Chemicals

Seal Face : Silicon Carbide

Sealing Face : Silicon carbide

Model : 560B

Contact Now

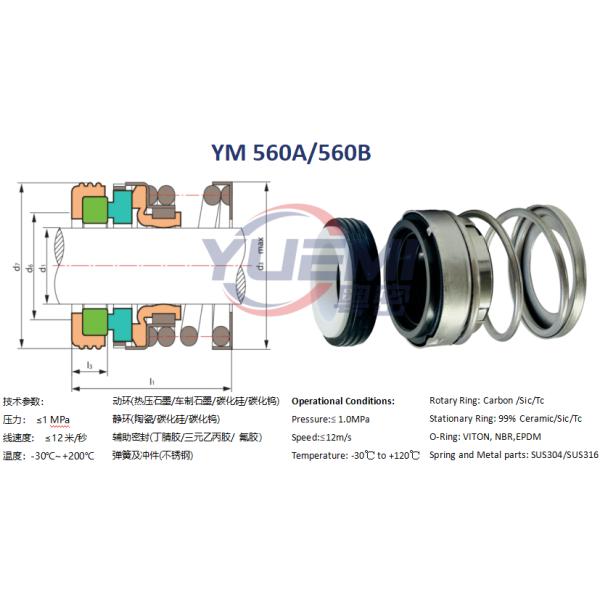

Type560B John Crane Type 21 Spring Elastomer Bellow Seal for Water Pump

Model

d1

(inches)

 d3 d6 d7 l1 l3
YM 560B-3/8" 9.525 23.5 14.3 22.230 28.6 7.9
YM 560B-1/2" 12.700 26.0 17.5 25.400 28.6 7.9
YM 560B-5/8" 15.875 30.0 20.6 31.750 32.5 10.3
YM 560B-3/4" 19.050 32.5 23.8 34.930 32.5 10.3
YM 560B-7/8" 22.225 37.5 27.0 38.100 34.1 10.3
YM 560B-1" 25.400 44.0 30.2 41.280 36.5 11.1
YM 560B-1 1/8" 28.575 48.0 33.3 44.450 38.1 11.1
YM 560B-1 1/4" 31.750 50.0 36.5 47.630 38.1 11.1
YM 560B-1 3/8" 34.925 54.5 39.7 50.800 39.7 11.1
YM 560B-1 1/2" 38.100 58.5 42.9 53.980 39.7 11.1
YM 560B-1 5/8" 41.275 64.0 46.0 60.330 47.6 12.7
YM 560B-1 3/4" 44.450 67.0 49.2 63.500 47.6 12.7
YM 560B-1 7/8" 47.625 71.0 52.4 66.680 50.8 12.7
YM 560B-2" 50.800 73.5 55.6 69.850 50.8 12.7
YM 560B-2 1/8" 53.975 75.6 / 76.200 57.2 14.3
YM 560B-2 1/4" 57.150 80.0 65.0 79.380 57.2 14.3
YM 560B-2 3/8" 60.325 79.6 / 82.550 57.2 14.3
YM 560B-2 1/2" 63.500 84.9 70.0 85.730 60.3 14.3
YM 560B-2 5/8" 66.675 84.6 / 85.725 65.1 15.9
YM 560B-2 3/4" 69.850 93.0 / 88.900 65.1 15.9
YM 560B-3" 76.200 102 / 98.425 68.3 15.9

DETAILS

Shaft Size 8mm to 50mm 3/8'' to 3''
Material Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
O-rings:NBR, EPDM, VITON
Other Metal Parts : SS316, SS304
Temperature -20ºC to 150ºC, dependent on the elastomer
Pressure Up to 8 bar
Speed Up to 10 m/s
End play/axial float allowance ±0.1mm

FAQ

F: Can you provide free samples

A: We do not provide free samples for the first time, but we can deduct the sample amount from future bulk orders

F: What is your delivery time

A: For products that are in stock, we can ship them out within 48 hours. For products that are out of stock or in large quantities, we need to communicate separately

F: What services can you provide

A: We provide OEM service

F: What are your payment terms

A: For most of the inventory products, we need to pay 100% in full; For products that require large-scale production or customization, we require a 30% advance payment. After confirming the accuracy of the product, the remaining 70% will be paid in full before shipment
